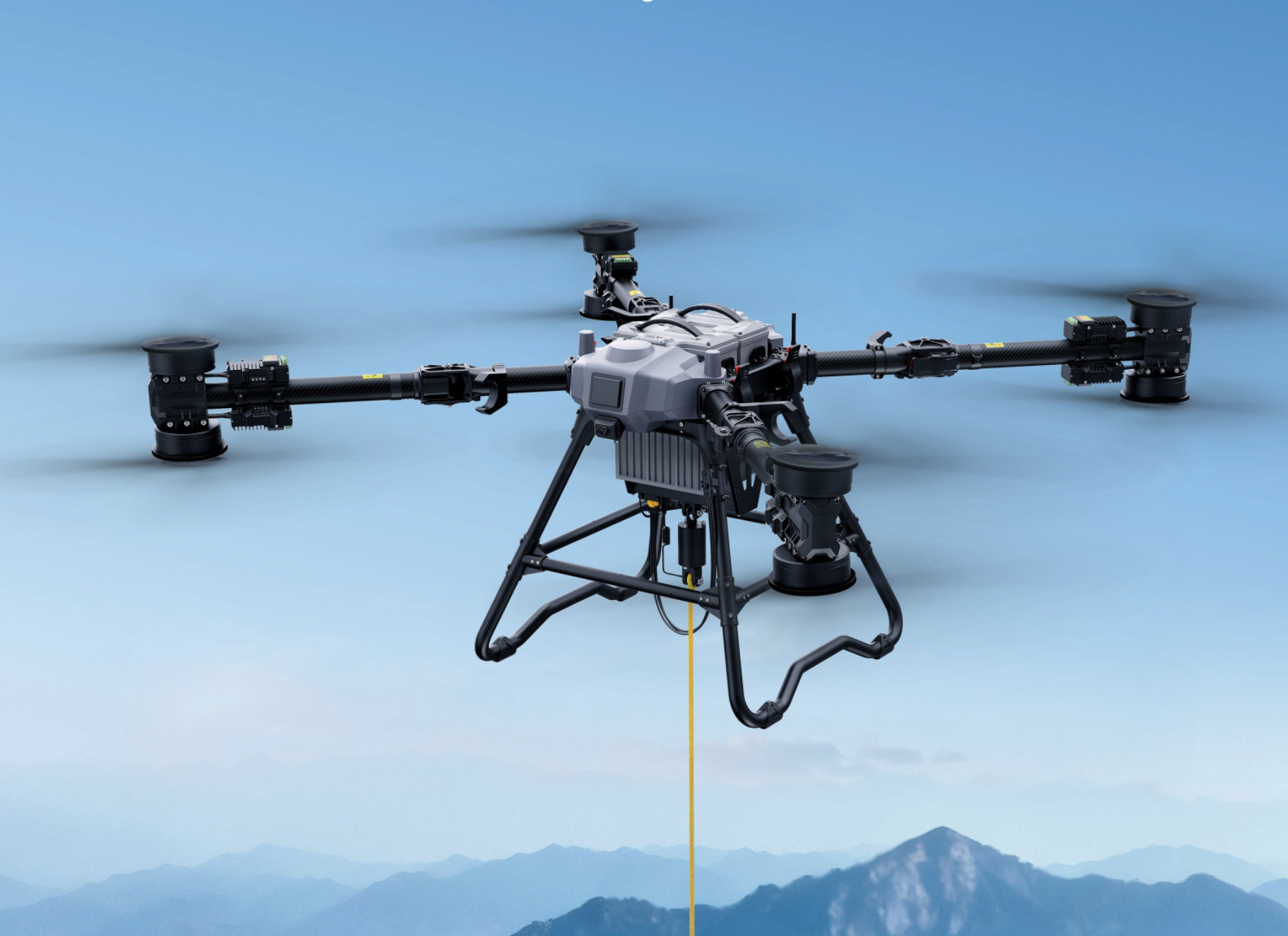

Delivery Drone (AS100)
Intelligent Heavy-Lift Transport.
Heavy-lift delivery platform built for reliable transport, with an intelligent lifting system and smart control for efficient operations.
100 kg
Max Payload
IP65
Protection Rating
Coaxial
10 m
Lifting Rope
Rotor Config
Next-Generation Transport
The D100 is equipped with a new-generation intelligent lifting system and is powered by the AS 4.0 smart control system to support heavy payload transport with stable performance.
ELM Intelligent Lifting
Operational safeguards engineered for real-world lifting scenarios, ensuring cargo and aircraft safety.
Real-time Weight Sensing
Active monitoring for precise delivery management.
Emergency Cut-off Fuse
Designed to release automatically in entanglement scenarios.
Shock Absorber System
Reduces sudden pulling forces when the rope tightens.
Airframe & Powertrain
Industrial-grade architecture built for high structural strength and stable flight at full load.
Metal Truss Frame
High structural strength with triple safety factor.
Coaxial Rotors
Optimized for higher thrust and stable power delivery.
Dual-Battery Config
18S 35000mAh for redundant power reliability.
Powered by AS 4.0
The AS 4.0 App supports multiple operation modes with real-time feedback and alerts, designed for complex transport scenarios.

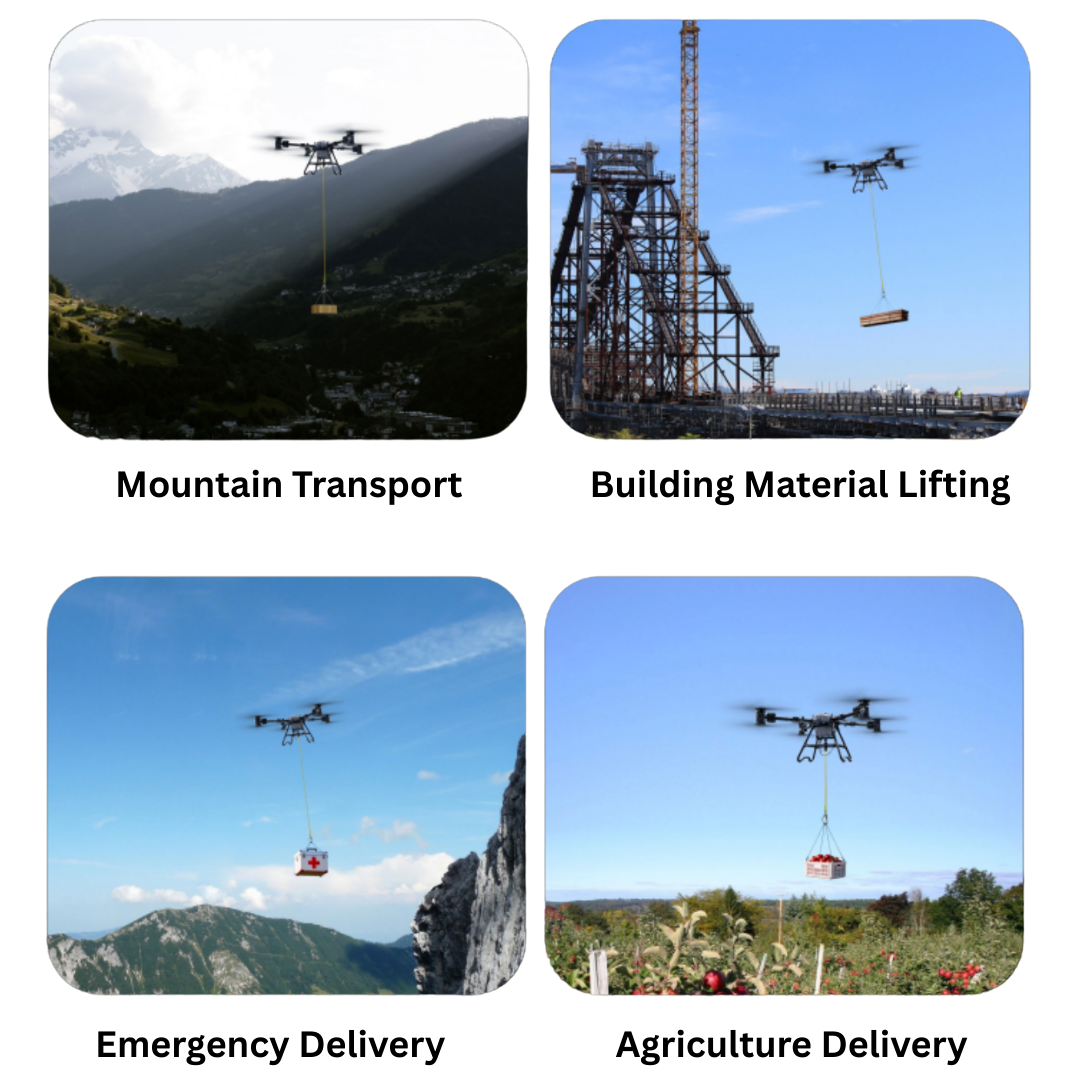

Point-to-Point Transport
Set loading point A and unloading point B with automatic route planning and one-click autonomous flight.
Dual-Control Workflow
Collaborative operations with real-time video sync and seamless control switching (optional).
HARDWARE RELIABILITY
Modular Flight Control
Quick-release Structure
500A Distribution Board
100 kg
10 m
CAN
2 km (LOS)
6 m/s
IP65
0°C to 40°C
Key Parameters
Max Payload
Rope Length
Control Mode
Transmission
Wind Resistance
IP Rating
Op. Temp
